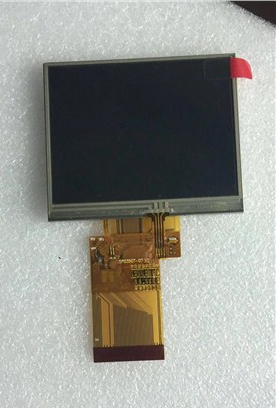

6) 3.5 inch AUO LCD panel

ꄴPrevious： 7) 4.3 inch AUO LCD screen

ꄲNext： 4) 15 inch AUO LCD panel

Brand	AUO	Model	A035QN05 V1
Size	3.5 inch	Type	a-Si TFT-LCD ,LCD module
Pixel number	320(RGB)×240 [QVGA]	Pixel	RGB verticle stripes
Active area	70.32(W)×52.74(H) mm	Viewing area	73.0(W)×55.35(H) mm
Outline	76.9(W)×63.9(H) ×3.12(T) mm	Surface treatment	Haze，Hard coating (3H)
Brightness	300 (cd/m2)	contrast	300:1 (Typ.) (TM)
Viewing Angle	60/60/50/55 (Typ.)(CR≥10)	Working mode	TN，normally white display, transmission type.
Best Angle of view	6 o'clock	Response time	10/15 (Typ.)(Tr/Td) ms
Display color	16.7M , 45% (CIE1931)	Light source	WLED [6S1P] , 10K hours, excluding drive
Working frequency	60Hz	Touch screen	Without
Weight	30.8g	Application
Interface	50 pins Serial RGB (8-bit) + SPI , FPC
Voltage	3.3/3.3V (Typ.)(VDD/VDDIO)
Operation environment	Operating: -10 ~ 70 °C; Storage: -40 ~ 80 °C
