4) 15 inch AUO LCD panel

ꄴPrevious： 3) 2.8 inch AUO LCD panel

ꄲNext： 1) 7.0 inch AUO LCD panel

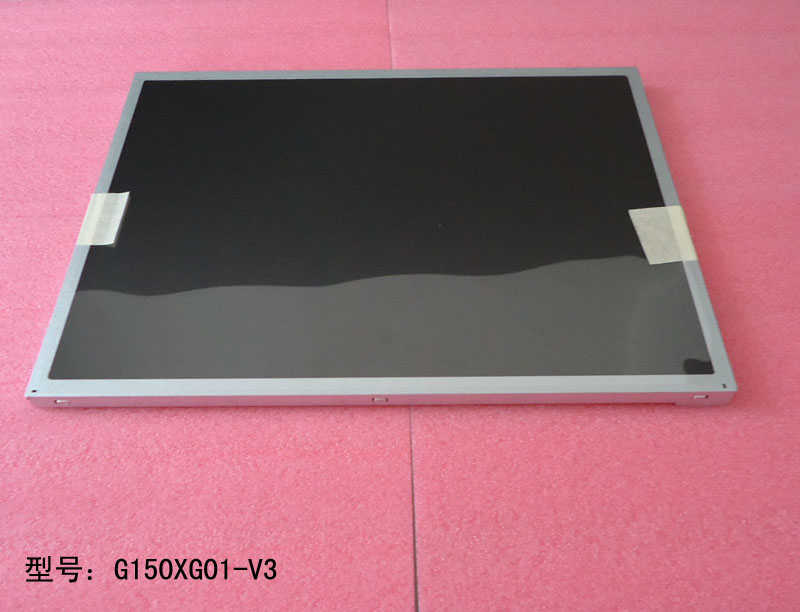

Brand	AUO	Model	G150XG01 V3
Size	15 inch	Type	a-Si TFT-LCD ,LCD module
Pixel number	1024 x 3(RGB) x768	Pixel	RGB verticle stripes
Active area	304.128(H) x 228.096(V) (mm)	Viewing area	36 × 60 (H×V) mm
Outline	326.5(W) x 253.5(H) x 13.1(D) (mm)	Surface treatment	Haze，Hard coating (3H)
Brightness	400 (cd/m2)	contrast	700 : 1 (Typ.)
Viewing Angle	R/L/U/D 80/80/60/80 (Deg)	Working mode	TN，normally white display, transmission type.
Best Angle of view	~	Response time	8 （ms）
Display color	262K , 65% (CIE1931)	Light source	4S1P WLED , excluding drive
Working frequency	60Hz	Touch screen	Without
Weight	1000土20 (g)	Application
Interface	Single channel LVDS
Voltage	1.8/2.8V (Typ.)(VDDI/VDD)
Operation environment	Operating: -30 ~ 85 °C; Storage: -30 ~ 85 °C
Operation Humidity	5-95 (%RH)
Storage Humidity	5-95 (%RH)
Display scale	~
Pixel Pitch	0.297(H) x 0.297 （mm）
Backlight)	LED
Lamp Number	~
Life Time of Lamp	~
