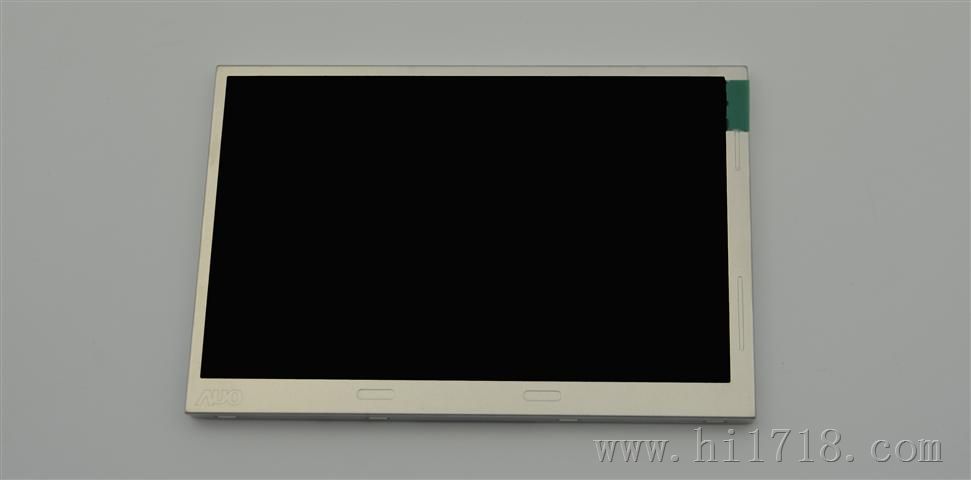

2) 5 inch AUO LCD panel

Brand AUO Model G050VTN01.1
Size 5.0 inch Type a-Si TFT-LCD ,LCD module
Pixel number 800(RGB)×480   [WVGA]  Pixel RGB verticle stripes
Active area 108 × 64.8 mm (H×V) Viewing area 111.25 × 68.7 mm (H×V)
Outline 119.33 × 79.18 × 8 mm (H×V×D)  Surface treatment HazeHard coating (3H)
Brightness 1000 cd/m² (Typ.) contrast 600 : 1 (Typ.) [Transmission type.]
Viewing Angle  75/75/65/75 (Typ.)(CR10)  Working mode TNnormally white display, transmission type.
Best Angle of view 12 o'clock Response time 20 (Typ.)(Tr+Td) ms
Display color  16.2M , 50% [CIE1931] Light source 7S2P WLED , 40K hours, excluding drive
Working frequency 60Hz  Touch screen Without
Weight  79.0±5.0g  Application
Interface  TTL (1 ch, 8-bit) , FPC , 40 pins
Voltage  3.3V (Typ.)
Operation environment Operating:  -20 ~ 70 °C; Storage: -30 ~ 80 °C
Vibration resistance  2.0G (19.6 m/s²)
