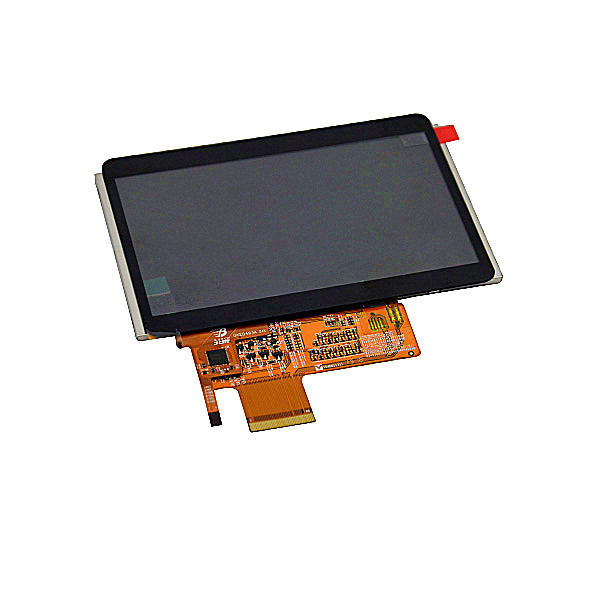

7) 4.3 inch AUO LCD screen

Brand	AUO	Model	G043FTT01.0
Size	4.3 inch	Type	a-Si TFT-LCD ,LCD module
Pixel number	480(RGB)×272 [WQVGA]	Pixel	RGB verticle stripes
Active area	95.04(W)×53.856(H) mm	Viewing area	100.8(W)×58.76(H) mm
Outline	105.5(W)×67.2(H) mm	Surface treatment	Haze (Haze 8%)，Hard coating (3H)
Brightness	400 (cd/m2)	contrast	400:1 (Typ.) (TM)
Viewing Angle	65/65/50/55 (Typ.)(CR≥10)	Working mode	TN，normally white display, transmission type (TM).
Best Angle of view	6 o'clock	Response time	15/20 (Typ.)(Tr/Td) ms
Display color	16.7M , 50% (CIE1931)	Light source	WLED [9S1P] , 10K hours, excluding drive
Working frequency	60Hz	Touch screen
Weight	59.0g (Typ.)	Application
Interface	45 pins Parallel RGB (1 ch, 8-bit) , FPC
Voltage	3.3/3.3V (Typ.)(VDD/VDDIO)
Operation environment	Operating: 0 ~ 70 °C; Storage: -30 ~ 80 °C
