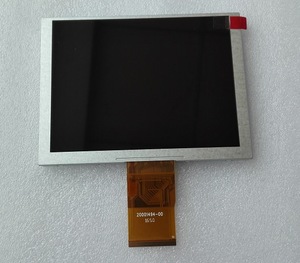

10) 5 inch Innolux LCD panel
| Brand | Innolux | Model | ZJ050NA-08C |
| Size | 5.0 inch | Type | a-Si TFT-LCD ,LCD module |
| Pixel number | 640(RGB)×480 [VGA] | Pixel | RGB verticle stripes |
| Display area | 101.76 × 76.32 mm (H×V) | Viewing area | 156.7 × 89.1 mm (H×V) |
| Appearance size | 117.65 × 88.43 × 5.9 mm (H×V×D) | Surface treatment | Foggy surface |
| Brightness | 250 cd/m² (Typ.) | contrast | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Working mode | TN，normally white display, transmission type |
| Best Angle of view | 6 o'clock | Reaction time | 10/15 (Typ.)(Tr/Td) ms |
| Display color | 16.7M , 50% [CIE1931] |
Light source
|
WLED , 15K hours, without drive. |
| Working frequency | 60Hz |
Touch screen
|
Without |
| Panel weight | 67.0g (Typ.) |
Application
|
|
| Interface | Parallel RGB (1 ch, 8-bit) , FPC , 50 pins | ||
| Voltage | 3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | ||
| Working environment | Working: -20 ~ 70 °C; Storage: -30 ~ 80 °C |
