3) 19 inch BOE LCD panel

ꄴPrevious： 5) 10.4 inch BOE LCD panel

ꄲNext： 2) 10.1 inch BOE LCD panel

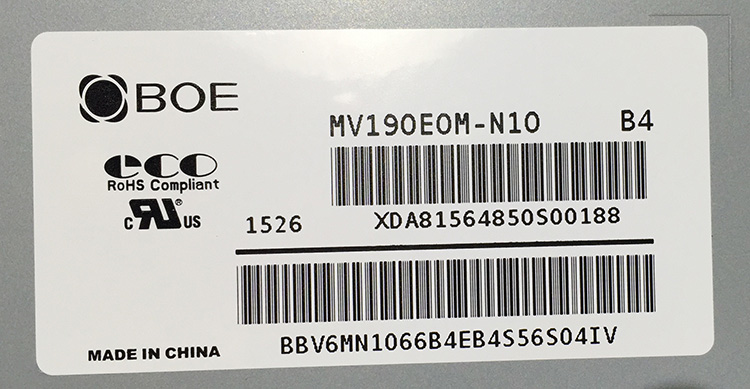

Brand	BOE	Model	MV190E0M-N10
Size	19.0 inch	Type	a-Si TFT-LCD ,LCD module
Pixel number	1280(RGB)×1024 [SXGA]	Pixel	RGB verticle stripes
Display area	374.784(W)×299.827(H) mm	Viewing area	378.8(W)×303.0(H) mm
Appearance size	396(W)×324(H) ×10.4(T) mm	Surface treatment	Foggy surface (Haze 25%)，Hard coating (3H)
Brightness	250 cd/m² (Typ.)	contrast	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Working mode	ADS，normally black display, transmission type
Best Angle of view	6 o'clock	Reaction time	8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms
Display color	16.7M , 72% (CIE1931)	Light source	WLED [2 strings], 30K hours, excluding drive
Working frequency	60Hz	Touch screen	Without
Panel weight	1.69Kgs (Typ.)	Application
Interface	30 pins LVDS (2 ch, 8-bit) , terminals
Voltage	5.0V (Typ.)
Working environment	Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C
