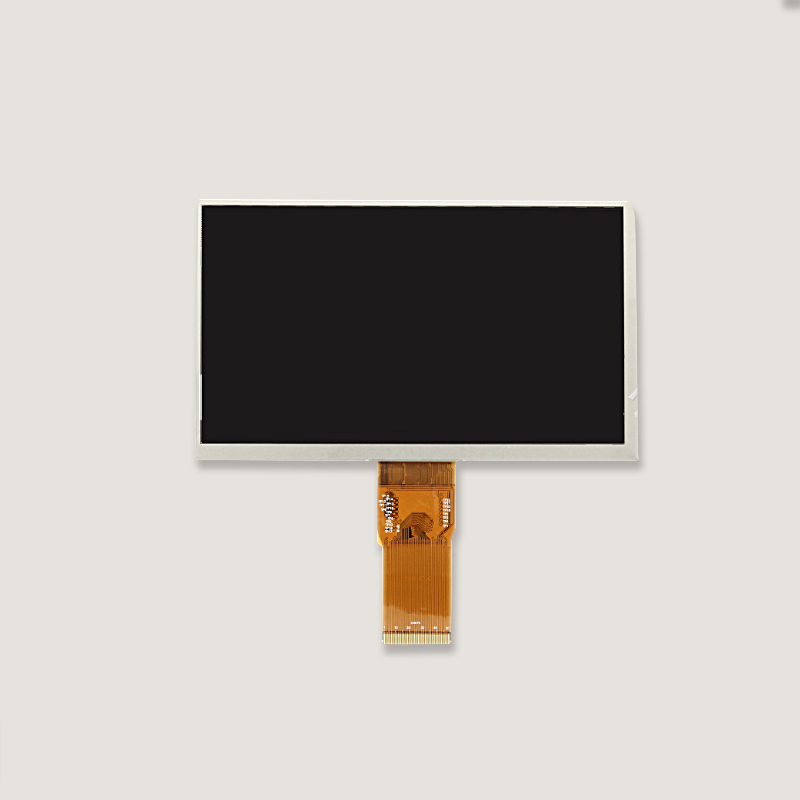

1) 7 inch BOE LCD panel

Brand BOE Model  AT070WSM-NW2
Size 7.0 inch Type a-Si TFT-LCD ,LCD module
Pixel number 1024(RGB)×600   [WSVGA] Pixel RGB verticle stripes
Display area 154.214(W)×85.92(H) mm  Viewing area 115.90 × 87.67 (H×V) mm
Appearance size   Surface treatment Foggy surface
Brightness   contrast 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/70 (Typ.)(CR10)  Working mode TNnormally white display, transmission type
Best Angle of view 6 o'clock Reaction time 25 (Typ.)(Tr+Tf) ms
Display color 262K/16.7M , 50% (CIE1931) Light source WLED
Working frequency 60Hz   Touch screen Without
Panel weight   Application
Interface Parallel RGB (1 ch, 6-bit) , FPC , 40 pins
Voltage  3.3V (Typ.)(VCC)
Working environment Working:   -20 ~ 70 °C; Storage:  -30 ~ 80 °C
