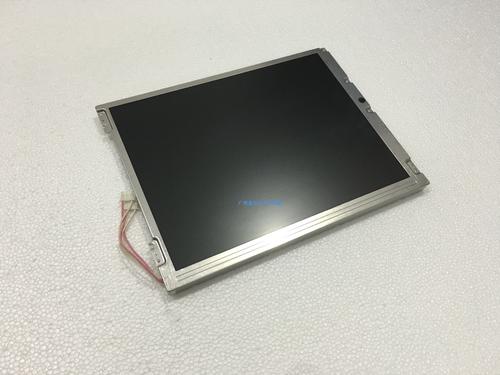

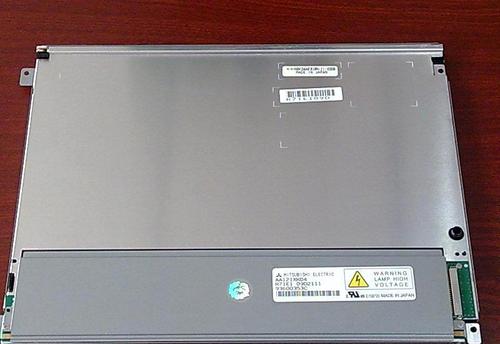

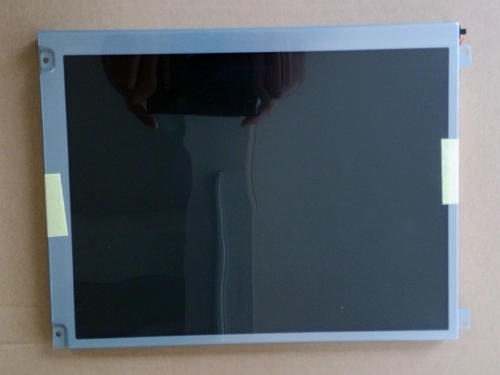

7) 12.1 inch Mitsubishi LCD panel

Brand: Mitubishi Model: AA121XL01
Size: 12.1 inch Lattice: R.G.B. Vertical Stripe
Pixel number: 1024 x 3(RGB) x 768 Contrast:   600:1
Viewing area: 249(H) x 187.5(V) (mm) Response time: (ms)
Outline: 260.5(W) x 203.0(H) x 9.7(D) (mm) Pixel Pitch:  0.080(H) x 0.240 mm
Brightness: 1000 (cd/m2) Backlight):  LED
Viewing Angle: R/L/U/D 85/85/60/80(Deg)
Weight: 610 (g)
Interface: LVDS
Operation temperature:   -30-80 ()
Storage temperature:   -30-80 ()
Operation Humidity: 5-95 (%RH)
Storage Humidity: 5-95 (%RH)
