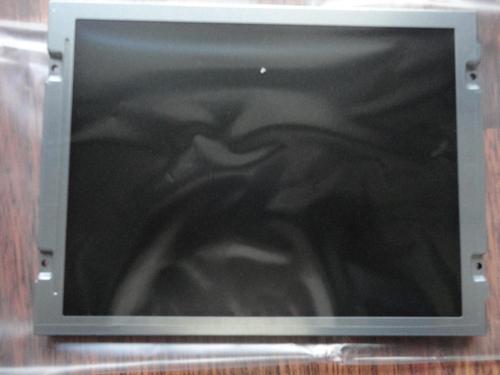

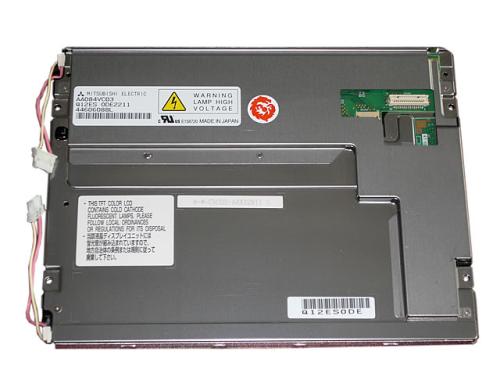

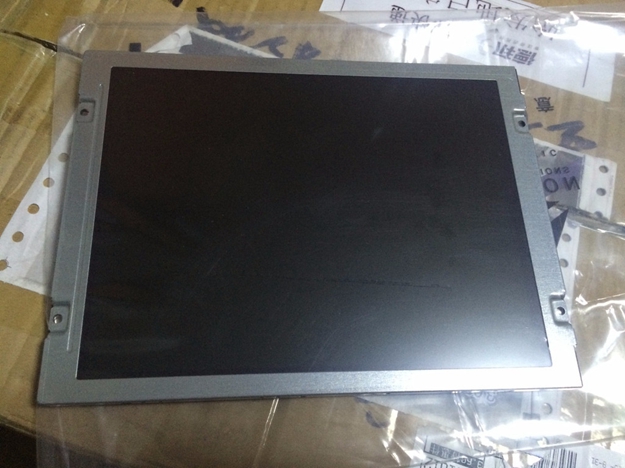

4) 8.4 inch Mitsubishi LCD panel

Brand: Mitubishi Model: AA084VE01
Size: 8.4 inch Lattice: R.G.B. Vertical Stripe
Pixel number: 640 x 3(RGB) x 480 Contrast:  200:1
Viewing area: 170.9(H) x 128.2(V) (mm) Response time:  20 ms
Outline: 199.5(W) x 149.0(H) x 11.5(D) (mm) Pixel Pitch:  0.267 x 0.267 mm
Brightness: 700 (cd/m2) Backlight): CCFL
Viewing Angle: R/L/U/D 80/80/70/50  (Deg)
Weight: 365 (g)
Interface: CMOS
Operation temperature:   -20-70 ()
Storage temperature:   -20-80 ()
Operation Humidity: 5-95 (%RH)
Storage Humidity: 5-95 (%RH)
