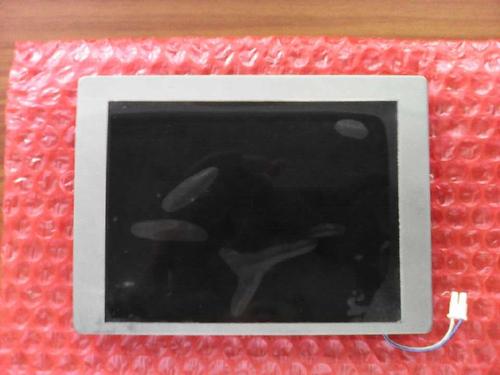

2) 5.7 inch Mitsubishi LCD panel

Brand: Mitubishi Model: AA057QD01
Size: 5.7 inch Lattice: R.G.B. Vertical Stripe
Pixel number: 320 x 3(RGB) x 240 Contrast:  600:1
Viewing area: 115.2(H) x 86.4(V) (mm) Response time: 35 ms
Outline: 144.0(W) x 104.8(H) x 8.8(D) (mm) Pixel Pitch: 0.36 x 0.36 mm
Brightness: 450 (cd/m2) Backlight): LED
Viewing Angle: R/L/U/D 80/80/60/80  (Deg)
Weight: TBD (g)
Interface: CMOS
Operation temperature:  -30-80 (℃)
Storage temperature:  -30-80 (℃)
Operation Humidity: 5-95 (%RH)
Storage Humidity: 5-95 (%RH)
