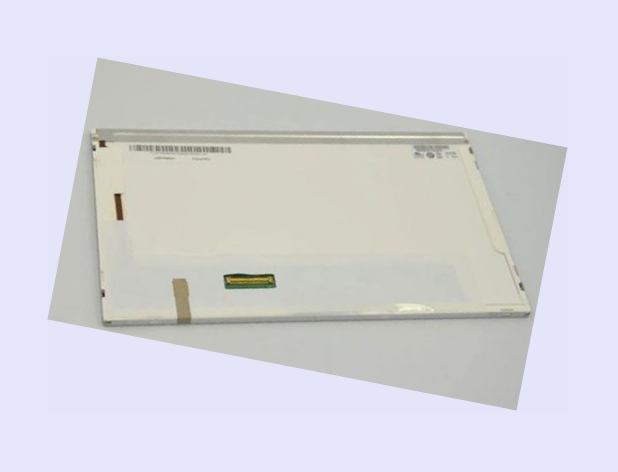

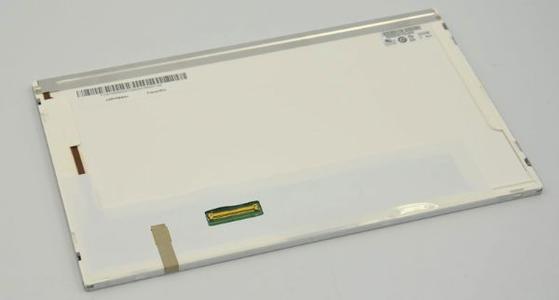

9) 10.1 inch AUO LCD panel

Brand AUO Model G101STN01.0
Size 10.1 inch  Type a-Si TFT-LCD ,LCD module
Pixel number 1024(RGB)×600   (WSVGA)   Pixel RGB verticle stripes
Active area 222.72 × 125.28 (H×V) mm  Viewing area 226.34 × 128.1 (H×V) mm
Outline 235 × 143 × 5.2 (H×V×D) mm  Surface treatment HazeHard coating (3H)
Brightness 250 cd/m² (Typ.)  Contrast 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)   Working mode TN,normally white display,(TM)
Best Angle of view ~ Response time 7/9 (Typ.)(Tr/Td) ms
Display color 262K/16.7M , 45% (CIE1931)  Light source WLED , 15K hours, including LED drive.
Working frequency 60Hz  Touch screen Without
Weight 180g (Typ.)  Application
Interface LVDS (1 ch, 6/8-bit) , terminals, 40 pins
Voltage 3.3V (Typ.)
Operation environment Operating: -10 ~ 60 °C  ; Storage:  -30 ~ 70 °C
