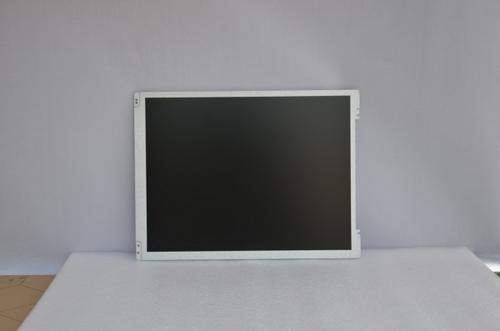

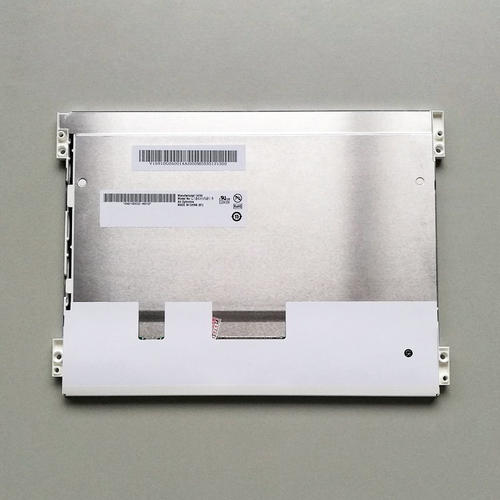

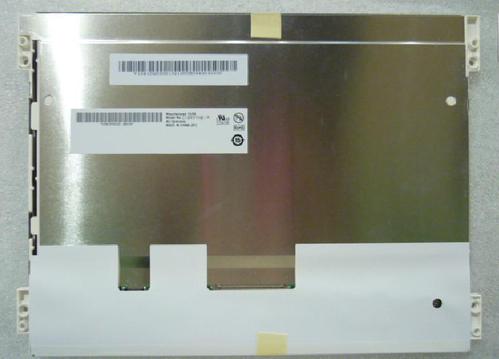

8) 10.4 inch AUO LCD panel

ꄴPrevious： 9) 10.1 inch AUO LCD panel

ꄲNext： 5) 19 inch AUO LCD panel

Brand	AUO	Model	G043FTT01.0
Size	10.4 inch	Type	a-Si TFT-LCD ,LCD module
Pixel number	1024(RGB)×768 [XGA]	Pixel	RGB verticle stripes
Active area	210.4(H)×157.8(V) mm	Viewing area	215.4(H)×161.8(V) mm
Outline	238.6(H)×175.8(V) ×7(D) mm	Surface treatment	Haze，Hard coating (3H)
Brightness	470 cd/m² (Typ.)	Contrast	3000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Working mode	PSA，normally black display, (TM)
Best Angle of view	Full view	Response time	20/10 (Typ.)(Tr/Td) ms
Display color	262K/16.2M , 60% (CIE1931)	Light source	WLED [2 strings] , 80K hours , including LED drive.
Working frequency	60Hz	Touch screen	Without
Weight	295g (Typ.)	Application
Interface	30 pins LVDS (1 ch, 6/8-bit) , terminals
Voltage	3.3V(Typ.)
Operation environment	Operating: -30 ~ 80 °C ; Storage: -30 ~ 80 °C
