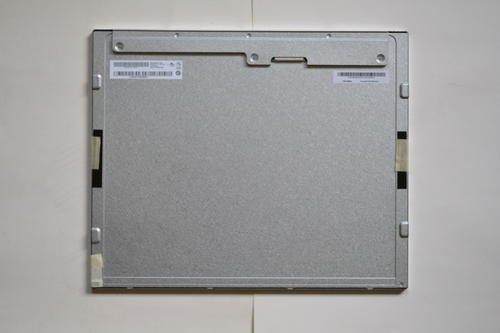

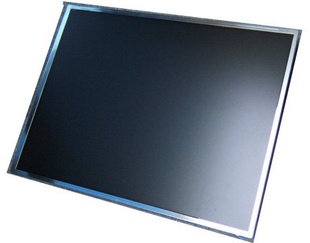

5) 19 inch AUO LCD panel

Brand AUO Model M190ETN01.0
Size 19.0 inch Type a-Si TFT-LCD ,LCD module
Pixel number 1280(RGB)×1024 , SXGA  Pixel RGB verticle stripes
Active area 376.32(W)×301.056(H) mm  Viewing area  380.0(W)×305.08(H) mm
Outline 396(W)×324(H) ×11.4(T) mm  Surface treatment HazeHard coating (3H)
Brightness 250 (cd/m2)  contrast  1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR10)   Working mode TNnormally white display, transmission type.
Best Angle of view ~ Response time 3.6/1.4 (Typ.)(Tr/Td)
Display color 16.7M , 72% (CIE1931)  Light source 11S4P WLED , 30K hours, excluding drive
Working frequency 60Hz  Touch screen Without
Weight  1.70Kgs (Typ.)  Application
Interface  LVDS (2 ch, 8-bit) , 30 pins , terminals
Voltage 5.0V (Typ.)
Operation environment Operating:   0 ~ 50 °C; Storage: -20 ~ 60 °C
