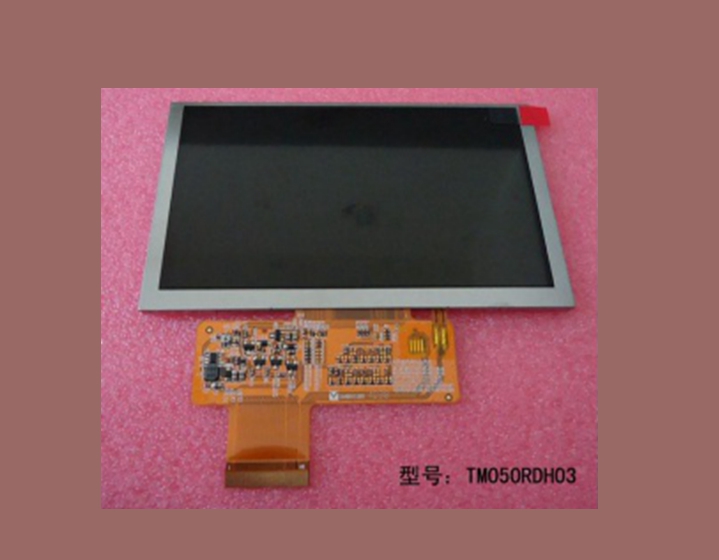

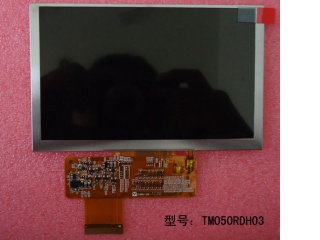

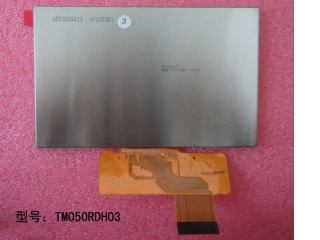

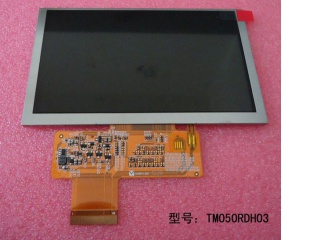

9) 5 inch TIANMA LCD panel

Brand TIANMA Model TM050RDH03-00
Size 5.0 inch Type a-Si TFT-LCD ,LCD module
Pixel number 800(RGB)×480 , WVGA Pixel RGB verticle stripes
Active area 108(W)×64.8(H) mm Viewing area 111.1(W)×67.9(H) mm
Outline 120.7(W)×75.8(H) ×3.1(T) mm Surface treatment Haze,Hard coating (3H)
Brightness 250 cd/m² (Typ.) contrast 600 : 1 (Typ.) [Transmission type.]
Viewing Angle 70/70/50/70 (Typ.)(CR10) Working mode TNnormally white display, transmission type.
Best Angle of view 12 o'clock Response time 20 (Typ.)(Tr+Td) ms
Display color 16.7M , 50% (CIE1931) Light source 7S2P WLED, 20K hours, excluding drive
Working frequency 60Hz  Touch screen Without
Weight TBD Application
Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Voltage 3.3V (Typ.)
Operation environment Operating:  -20 ~ 70 °C; Storage: -30 ~ 80 °C
