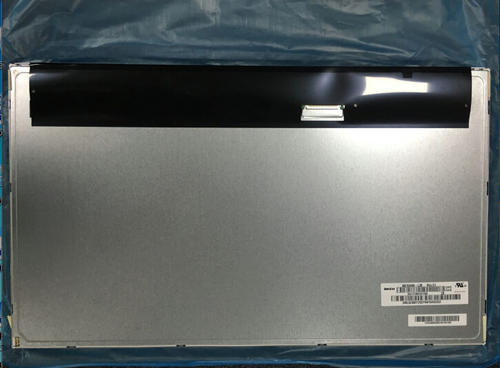

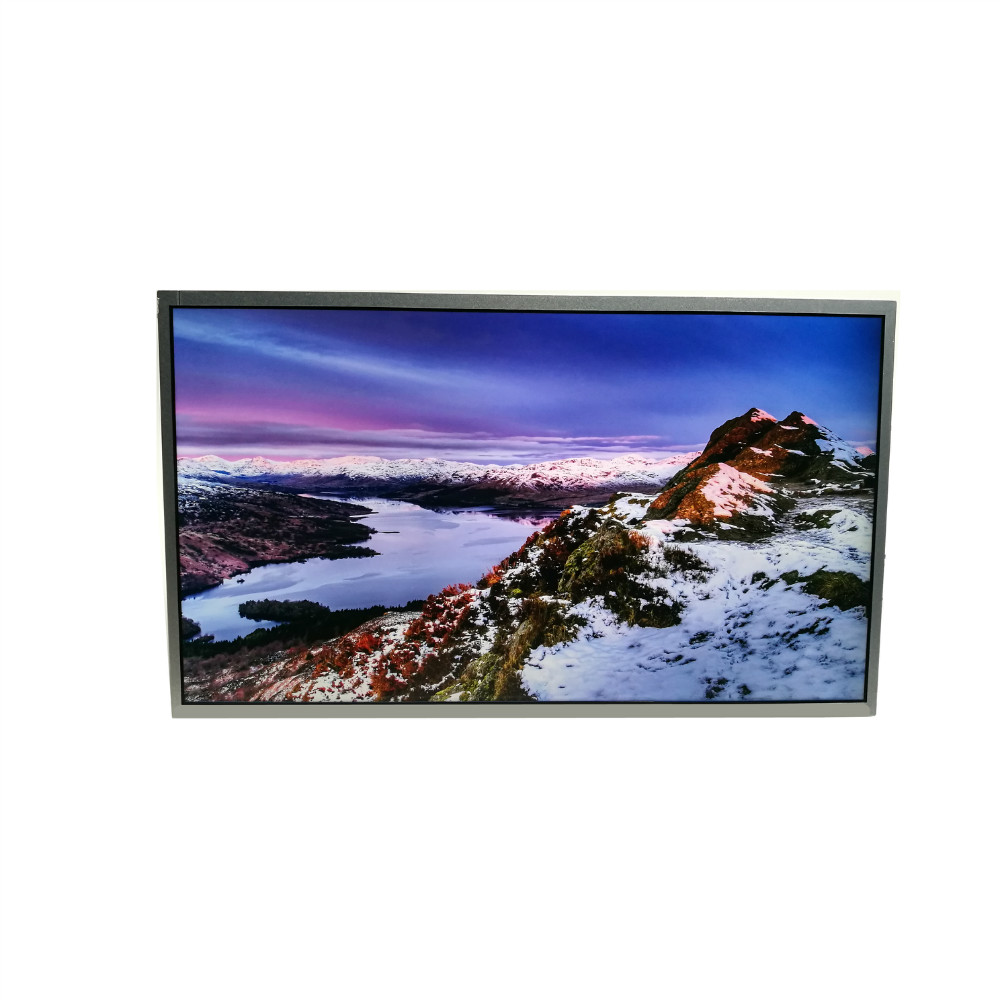

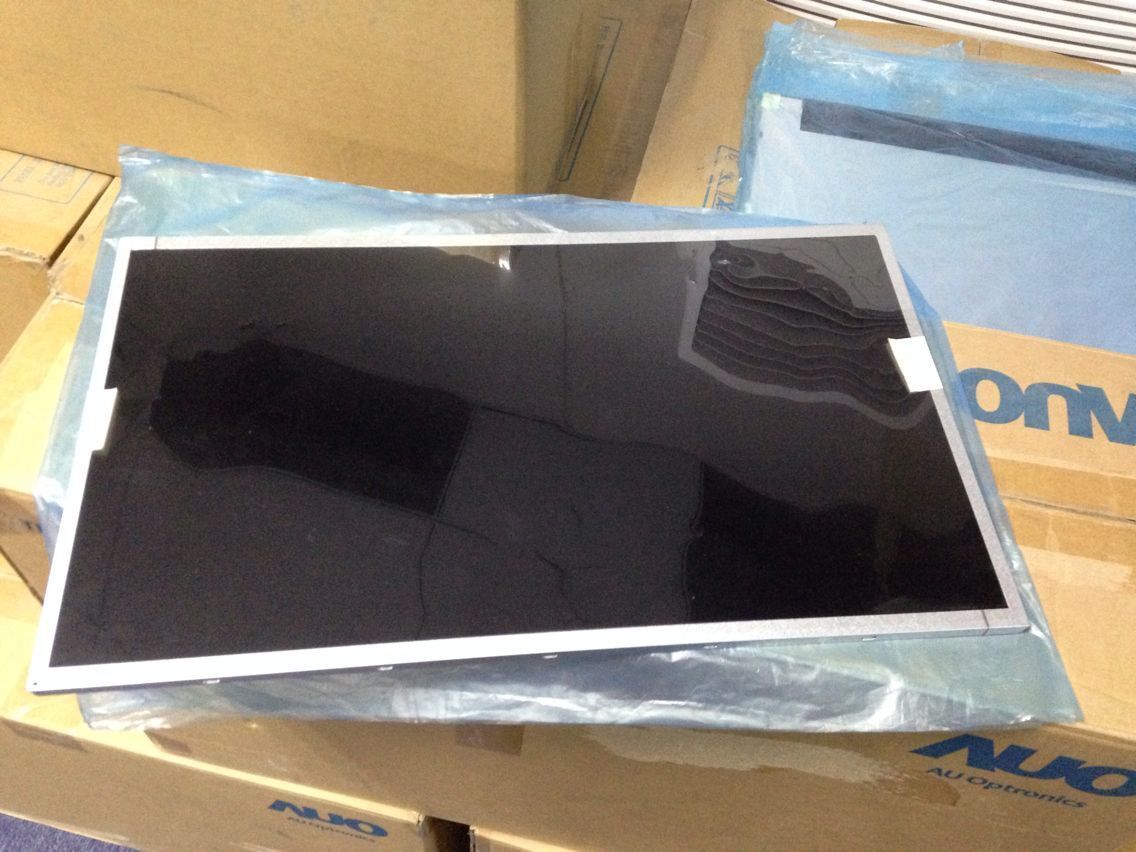

4) 21.5 inch Innolux LCD panel
| Brand | Innolux | Model | M215HNE-L30 |
| Size | 21.5 inch | Type | a-Si TFT-LCD ,LCD module |
| Pixel number | 1920(RGB)×1080 , FHD | Pixel | RGB verticle stripes |
| Display area | 476.064(W)×267.786(H) mm | Viewing area | 479.84(W)×271.3(H) mm |
| Appearance size | 495.6(W)×292.2(H) ×12(T) mm | Surface treatment | Haze，Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) | contrast | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Working mode | Super MVA，normally black display, transmission type. |
| Best Angle of view | ~ | Reaction time | 15/5 (Typ.)(Tr/Td) |
| Display color | 16.7M , 72% (CIE1931) |
Light source
|
WLED , 40K hours, without drive |
| Working frequency | 60Hz |
Touch screen
|
Without |
| Panel weight | 1.80/1.85Kgs (Typ./Max.) |
Application
|
|
| Interface | LVDS (2 ch, 8-bit) , 30 pins , terminals | ||
| Voltage | 5.0V (Typ.) | ||
| Working environment | Working: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
