3) 23.6 inch Innolux LCD panel
| Brand |
Innolux
|

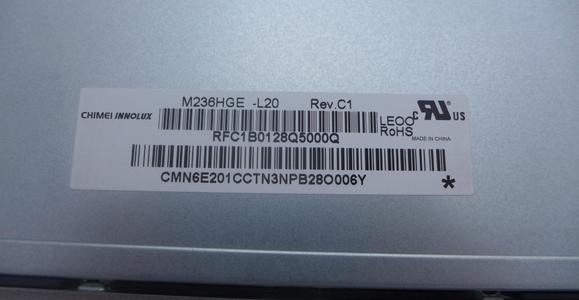

Model | M236HGE-L20 |
| Size | 23.6 inch | Type | a-Si TFT-LCD ,LCD module |
| Pixel number | 1920(RGB)×1080 , FHD | Pixel | RGB verticle stripes |
| Display area | 521.28(W)×293.22(H) mm | Viewing area | 525.22(W)×297.22(H) mm |
| Appearance size | 544.8(W)×320.5(H) mm | Surface treatment | (Haze 25%)，Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) | contrast | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Working mode | TN，normally white mode，transmission type |
| Best Angle of view | ~ | Reaction time | 1.5/3.5 (Typ.)(Tr/Td) |
| Display color | 16.7M , 72% (CIE1931) |
Light source
|
4 strings WLED , 40K hours, without drive |
| Working frequency | 60Hz |
Touch screen
|
Without |
| Panel weight | 2.31/2.41Kgs (Typ./Max.) |
Application
|
|
| Interface | LVDS (2 ch, 8-bit) , 30 pins , terminals | ||
| Voltage | 5.0V (Typ.) | ||
| Working environment | Working: 0 ~ 50 °C ; Storage: - -20 ~ 60 °C |
