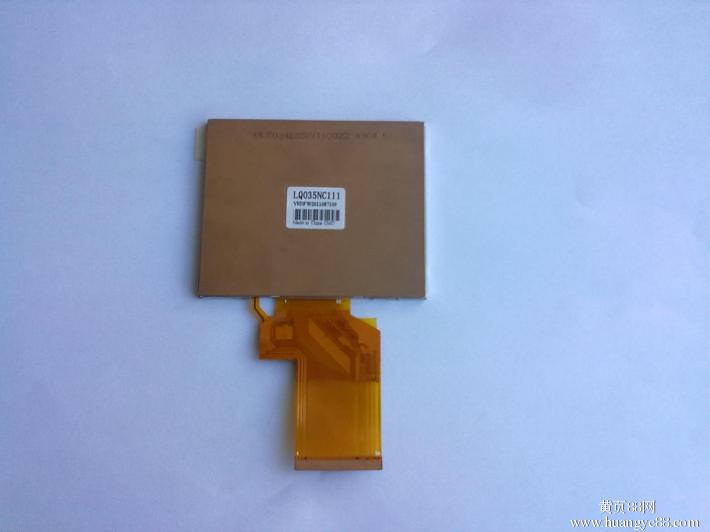

2) 3.5 inch Innolux LCD panel
| Brand |
Innolux
|
Model |
LQ035NC111
|
| Size | 3.5 inch | Type | a-Si TFT-LCD ,LCD module |
| Pixel number | 320(RGB)×240 (QVGA) | Pixel | RGB verticle stripes |
| Display area | 70.08 × 52.56 (H×V) mm | Viewing area | 76.9 × 63.9 × 3.46 (H×V×D) mm |
| Appearance size | 73.03 × 55.50 (H×V) mm | Surface treatment | Mirror surface (Haze 0%)，Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) | contrast | 400:1 (Typ.) (TM) |
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) | Working mode | TN，normally white mode，transmission type |
| Best Angle of view | ~ | Reaction time | 10/15 (Typ.)(Tr/Td) ms |
| Display color | 16.7M , 60% (CIE1931) |
Light source
|
6S1P WLED , 10K hours , no drive. |
| Working frequency | 60Hz |
Touch screen
|
Without |
| Panel weight | 510/540g (Typ./Max.) |
Application
|
|
| Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins | ||
| Voltage | 3.3V (Typ.) | ||
| Working environment | Working: -20 ~ 70 °C ; Storage: - -30 ~ 80 °C | ||
