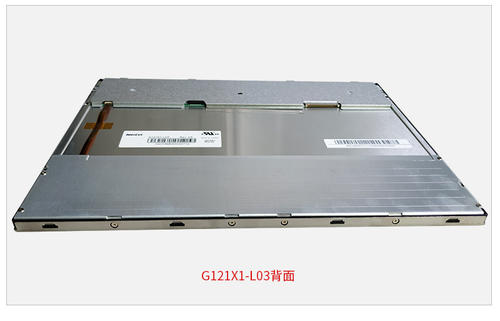

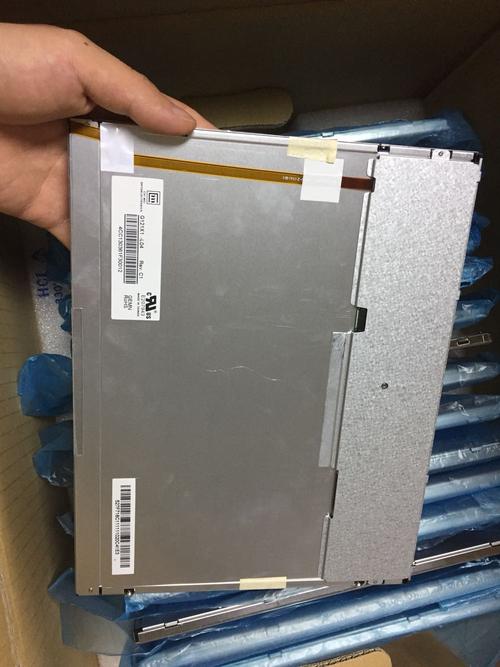

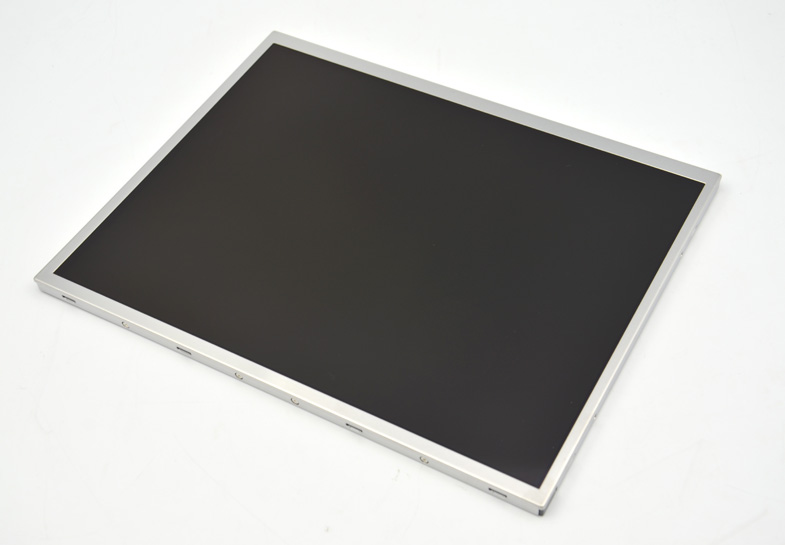

12.1 Innolux LCD panel
| Brand: | Innolux | Model: | G121X1-L03 |
| Size: | 12.1 inch | Type: | a-Si TFT-LCD ,LCD module |
| Pixel number: | 1024(RGB)×768 , XGA | Pixel layout: | RGB verticle stripes |
| Display area: | 245.76(Width)×184.32(Height) mm | Viewing area: | 249.0(W)×187.5(H) mm |
| Appearance size: | 260.5(Width)×204(High) ×8.9(Thickess) mm | Surface treatment: | Mirror surface (Haze 0%)，Hard coating (3H) |
| Brightness: | 600 cd/m² (Typ.) | contrast: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) | Working mode: | TN，normally white mode，transmission type |
| Best Angle of view: | ~ | Reaction time: | 5/11 (Typ.)(Tr/Td) |
| Display color: | 262K/16.2M , 63% (CIE1931) |
Light source:
|
WLED, 50K hours, including LED driver |
| Working frequency: | 60Hz |
Touch screen:
|
Without |
| Panel weight: | 510/540g (Typ./Max.) |
Application:
|
|
| Interface: | LVDS (1 ch, 6/8-bit) , 20 pins , terminals | ||
| Voltage: | 3.3/5.0V (Typ.)(VCC) | ||
| Working environment: | Working: -30 ~ 80 °C ; Storage: - 40 ~ 85 °C |
